Behind Closed Doors

This week sees a cold snap hit the UK, but nothing like the unbelievable temperatures in the USA. Our thoughts are with you guys on that side of the almost frozen pond. A lot of work is going on behind the closed doors of the new office and store rooms. Revised part labelling and stock storage is pretty much now completed. Not that there will be anything different to see even if we took a load of photo’s for you. The shelves are now bursting at the seams, like they always are. We are happy with the new electronic stock picking system that Morgan has been fine tuning and works a treat for walk in customers.

Customer Cars

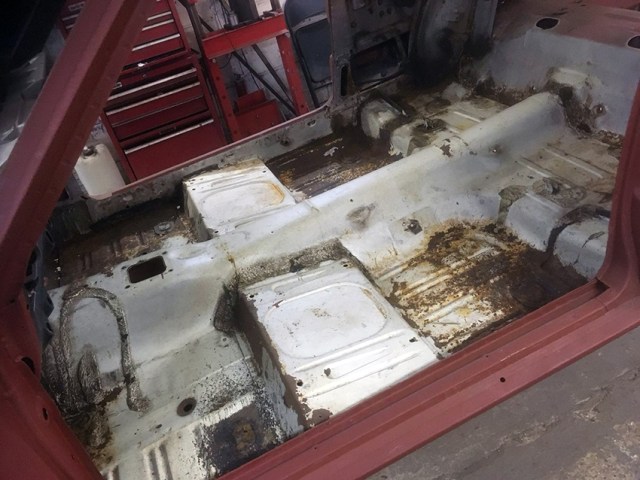

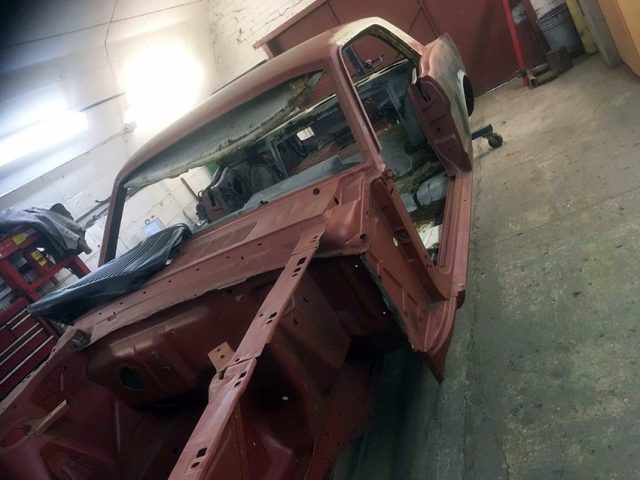

We have Chris’ ’66 Coupe which we have been storing for a while now and has now been promoted to the body shop room where The Onion Mustang was previously rebuilt. This car had a couple of rear quarters fitted by a third-party, although they were sort of OK, they were certainly not up to our standards. To be honest, they would have caused issues a little later on, we will explain a little further down. The floor pan was shot after it was stripped back for a close inspection. We thought that we could salvage and patch in new plates of metal, but the rust worm made the metal as thin as aluminium foil in places. It looked fine, unfortunately some of the structural areas near the sills we were certainly not happy with. So a new floor is the most economical way to fix it.

The floor was cut out back to the fresh metal. The front chassis legs look pretty good so that is pretty big bonus for Chris.

Chris had been working hard on the outside and inner panels with the red oxide ready for base and top coat paints.

When we get to the back of the trunk area we will need to check the drop offs and rear panel.

The rear quarters were skinned and not the full rear quarters. The skins involve cutting a line and mating the old and new panels up. This method of repair is notorious for cracking and rusting out at the seam joins. its much better to take out the whole quarter and braze the panels in on the C pillar like they are supposed to be. But, that requires a lot more time and effort as well as a new skill set to do it correctly.

Tip: If you are looking to buy a Mustang, always check inside the trunk for a part skin repair. Feel along the inside of the rear quarter panels to see if you can feel a seam, they should be smooth all the way down from top to bottom.

Ford article for the new 2020 Shelby Mustangs:

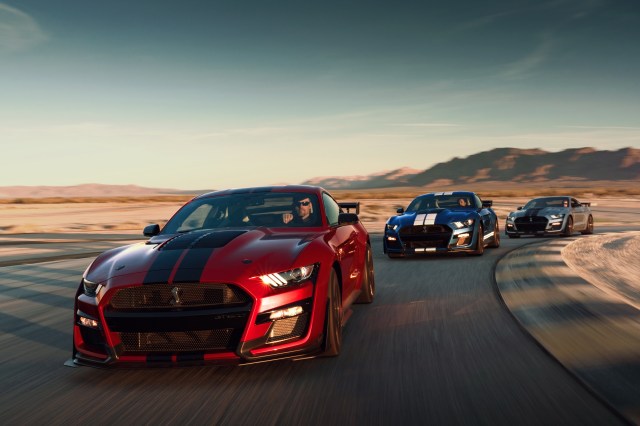

The all-new Shelby GT500 – the pinnacle of any pony car ever engineered by Ford Performance – delivers on its heritage with more than 700 horsepower for the quickest street-legal acceleration and most high-performance technology to date ever offered in a Ford Mustang.

“Carroll was always working on the next faster Shelby, I think he would love this Mustang more than any other,” said Jim Farley, Ford president, global markets. “A takedown artist, the new Shelby GT500 will surprise supercar owners with its Ford Performance racing tech, supercharged engine and visceral swagger.”

Arriving this fall to join its Shelby GT350 stablemate, Shelby GT500 is engineered to attack on all fronts. At the drag strip, it’s set to produce a projected 700-plus horsepower via its first-in-class dual-clutch transmission. At the track, performance improves even more thanks to its race-bred chassis, custom Michelin tires and the largest front brake rotors ever available on an American sports coupe. On the street, its menacing aerodynamic design and Ford Performance driver control technologies make every moment behind the wheel even more exhilarating.

Most powerful Ford production car ever

In the process of making the all-new Shelby GT500 the quickest street-legal Mustang ever, Ford Performance created an exclusive powertrain to deliver new levels of power and torque. “With its supercar-level powertrain, the all-new Shelby GT500 takes the sixth-generation Mustang to a performance level once reserved only for exotics,” said Hermann Salenbauch, global director, Ford Performance vehicle programs. “As a Mustang, it has to be attainable and punch above its weight. To that end, we’ve set a new standard among American performance cars with our most powerful street-legal V8 engine to date, plus the quickest-shifting transmission ever in a Mustang for all-out precision and speed.”

Shelby GT500 starts with a supercharged 5.2-liter aluminum alloy engine built by hand. To keep the intake air cooler and deliver a lower center of gravity, the team inverted a 2.65-liter roots-type supercharger with air-to-liquid intercooler tucked neatly in the V8 engine valley.

Like Shelby GT350, the aluminum alloy block features weight-saving wire-arc cylinder liners and high-flow aluminum cylinder heads, plus larger forged connecting rods, improved lubrication and cooling passages. Beneath that, a structural oil pan adds strength, reduces vibration, and features a patented active baffle system to keep oil where it’s needed. To channel power and torque to the unique carbon fiber driveshaft, Ford Performance leveraged learnings from the tuning of its Ford GT supercar’s dual-clutch transmission. The team selected a TREMEC® 7-speed dual-clutch transmission, which is capable of shifts in under 100 milliseconds – markedly faster than any manual gearbox. This dual-clutch transmission is designed for a number of drive modes, including normal, weather, sport, drag and track, and activates features like line-lock and launch control through selectable Track Apps.

Next-evolution Mustang performance bred from Ford GT and Mustang GT4

To harness the power and torque of the most powerful Mustang ever made for the street  requires cutting-edge active chassis technology, track-bred Michelin tires and Brembo® brakes – all dialed in by Ford Performance.

Shelby GT500 takes advantage of revised suspension geometry, a new electronic power steering unit and lighter-weight coil springs front and rear. Next-generation active MagneRide suspension is baked-in, along with the latest in advanced drive mode technologies from Ford Performance. The payoff is the highest-ever lateral acceleration from a Mustang for greater track performance and driver control.

Putting all this chassis hardware to the pavement, custom Ford Performance-spec Michelin Pilot Sport 4S tires and more aggressive Pilot Sport Cup 2 tires feature unique compounds and tread. To provide track-ready stopping power, massive 16-5-inch (420-millimeter) two-piece rotors are added – the largest of any domestic sports coupe – plus larger, stiffer Brembo six-piston calipers. With 20 percent more swept area than the Shelby GT350’s, these brakes have more than 30 percent additional thermal mass in the front corners.

Two handling packages with increasing levels capability are offered for the all-new Shelby GT500. An available Handling Package includes adjustable strut top mounts and spoiler with Gurney flap. For the truly hardcore, an available Carbon Fiber Track Package features exposed 20-inch carbon fiber wheels with 0.5-inch-wider rear wheels (11.5-inch), custom Michelin Pilot Sport Cup 2 tires, adjustable exposed carbon fiber GT4 track wing and splitter wickers with integrated dive plane. The rear seat is deleted to reduce weight.

A functional, menacing design tuned with Ford Performance know-how

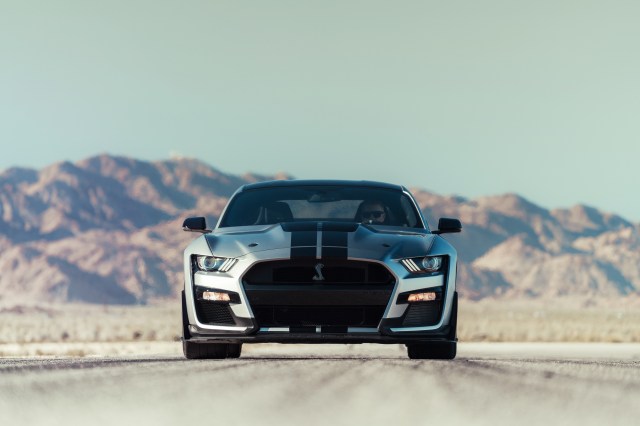

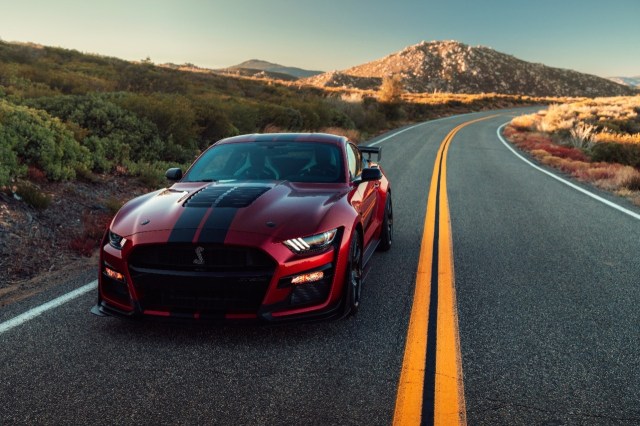

Thanks to a cross-functional team of designers, Ford Performance engineers and motorsports collaborators, the 2020 Shelby GT500 has functional track-hero looks to match its performance capabilities. “With a double front grille opening and 50 percent more cooling pack airflow versus the Shelby GT350, along with the most advanced aero components and downforce we’ve ever offered, every millimeter of Shelby GT500’s fastback design is aimed at improving performance,” said Melvin Betancourt, Ford design manager. Those large angular grille openings and muscular hood combine for a menacing, aerodynamic-led design inspired by modern fighter jet aircraft. The car’s wider front fenders and stance housing Shelby GT500-specific 20×11-inch wheels proportionally align to its rear fenders that hug up to 20×11.5-inch wheels. A standard new rear spoiler and updated composite materials in the rear diffuser result in added thermal management.

The team leveraged Ford’s motorsports technical center in North Carolina and its windshear rolling wind tunnel – where top-tier racing teams test – to perfect the design of the Shelby GT500. Front fascia openings are more than doubled versus the Shelby GT350, while six heat exchangers are stuffed in to increase cooling pack airflow by more than 50 percent. A massive 31×28-inch louvered hood vent features a removable aluminum rain tray for better air extraction and increased downforce.

More craftsmanship, technology and driver comfort

Shelby GT500’s purpose-built cockpit boasts race-inspired premium materials and unique finishes worthy of its world-class power. Premium touchpoints include an available exposed carbon fiber instrument panel appliqué and new door panel inserts in Dark Slate Miko® suede with accent stitching. Available Recaro racing seats with firm side bolstering and pass-throughs for safety harnesses offer the highest level of performance. For those looking for even greater comfort, power-adjustable seating with Miko suede inserts is offered. The all-new Shelby GT500 picks up a 12-inch full-color LCD instrument cluster, while a high-performance custom-tuned 12-speaker B&O® Play premium audio system is available. All of this is controlled via an 8-inch SYNC® 3 touch screen featuring SiriusXM and FordPass Connect. New colors for 2020 include Red Hot, Twister Orange and Iconic Silver. Painted stripes are available for the all-new Shelby GT500 too.

Building on the legacy of Shelby performance

With a reputation for transforming Ford Mustang into dominant road racing machines, Carroll Shelby, American racer and entrepreneur, took his legendary Mustang GT350 model further in 1967 to craft the first-generation Shelby GT500 with a modified 428-cubic-inch V8 inspired by his team’s 1-2-3 finish at Le Mans.

Carroll Shelby called the original Shelby GT500 “the first real car I’m really proud of.” Today, that legacy continues with the third-generation 2020 Mustang Shelby GT500 – the most powerful and most advanced Mustang ever.

We at Mustang Maniac think that Ford & Shelby America need to give us a GT500 so we can show it off sorry, promote it for them. We would drive it sensibly and not drive it like we stole it. Well, most of the time anyway. Do we want one? Oh, yes!

It will prove to be a worthy successor to the fabled Mustang and Shelby badges.

Source: https://www.at.ford.com/en/homepage/news-and-clipsheet/news/2019/1/shelby.html?cid=BOC-2019-01-14

About Mustang Maniac

A business dedicated to restoration of Classic Mustangs. We supply parts, service, restoration and custom builds. Anything Mustang we can help.
This entry was posted in Articles, Customers' Cars, Mustang, Mustang Maniac, restoration, Webshop and tagged , , , , , , , , , , , , , , . Bookmark the permalink.
