We were recently speaking to a valued customer regarding his very sorry sounding engine. It was agreed re-building his unit seemed the best solution and he asked if during the rebuild we could achieve more power. This is no problem, but the whole engine project needs to be planned from start to finish. Simply buying go faster parts and bolting them on can lead to a severe mismatch of parts and a disappointing end result.

The extra power was to be gained via some very nice alloy AFR cylinder heads and an up rated camshaft, then we have to consider modifying a lot of the remaining engine components to compliment these new parts.

For instance the AFR heads we used came with larger inlet valves which are great for airflow, but would almost certainly have hit the standard pistons. The piston valve clearance cut outs are machined to clear the standard diameter valves and a standard camshaft. With the extra lift from the performance cam, sufficient cut out depth needs to be considered.

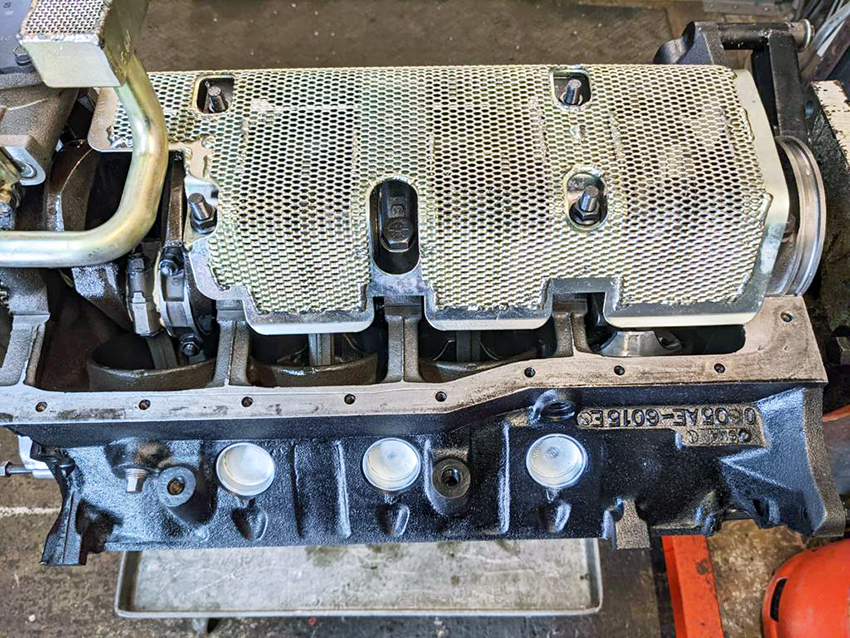

The completely bare block casting was re-bored and chemically cleaned so new pistons could be fitted along with a new crank and camshaft bearings.

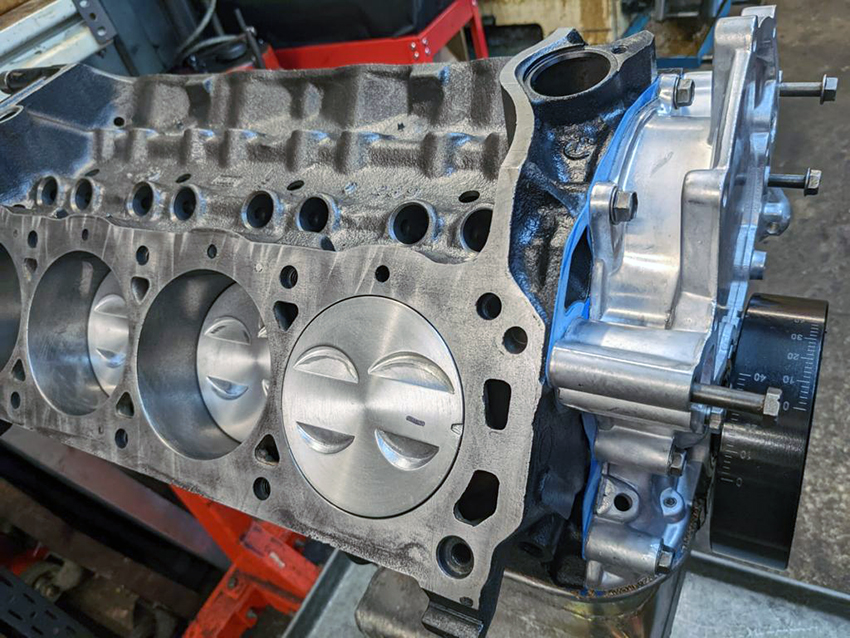

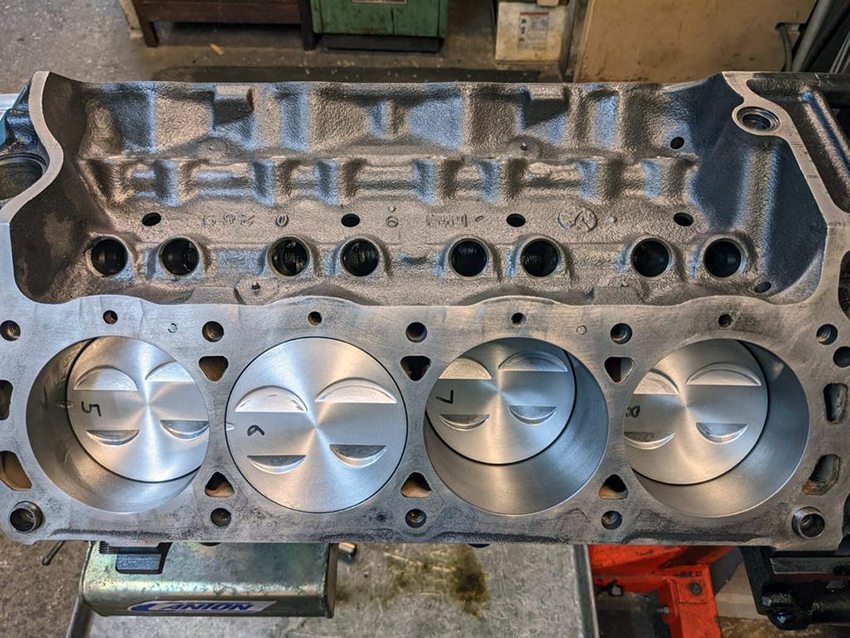

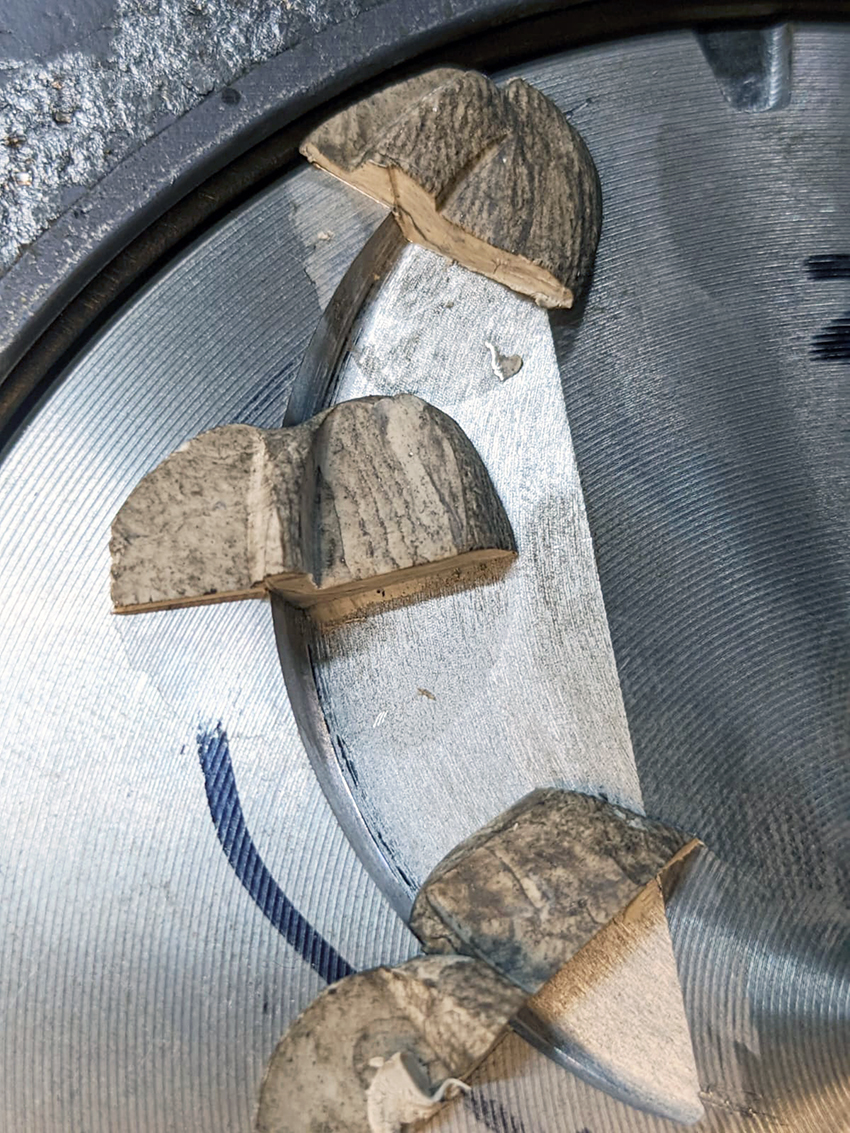

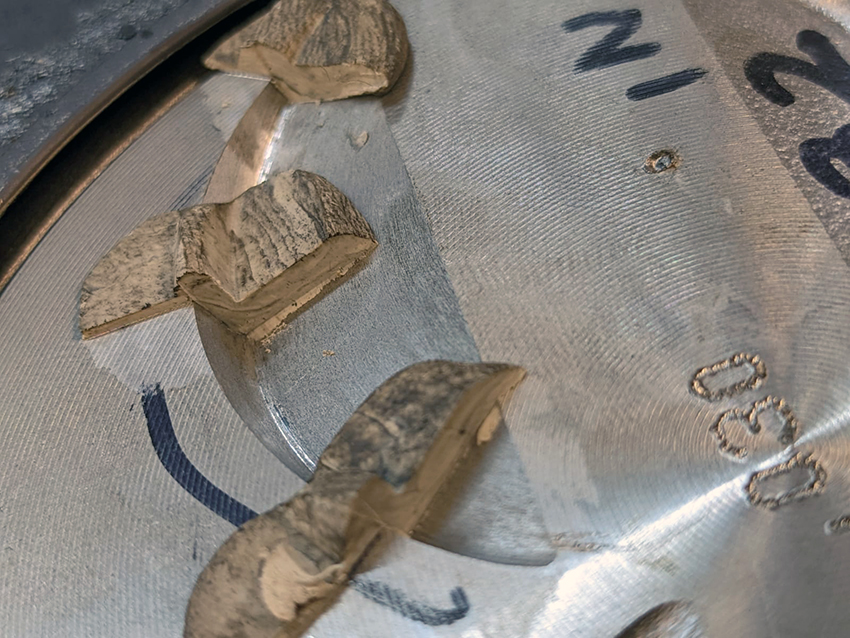

The engine is then dummy built to measure many clearances – especially the piston to valve clearances, it was evident the piston cut outs needed machining to clear the valves, also piston crowns were machined to desired height spec and then balanced as a set.

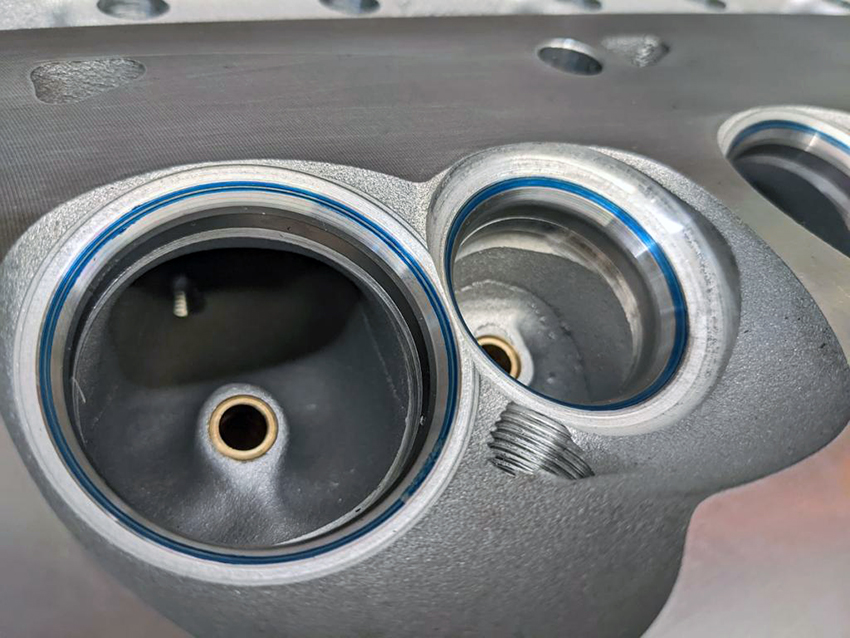

The AFR heads as lovely as they look were completely stripped down and all valves were checked for proper seal, also valve springs were checked for coil bind at full valve lift as without enough coil clearance they will break or damage camshaft etc,

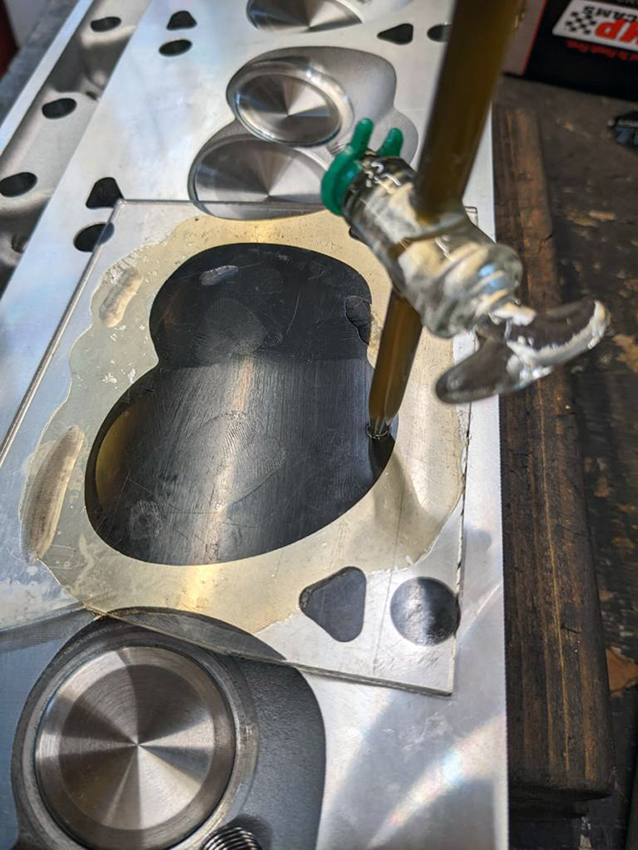

The combustion chamber volume was checked and heads machined for desired compression.

The engine is then finally assembled with all new seals, core plugs etc , the rods are matched in weight as a set and ARP rod bolts fitted, new oil pump and performance pump drive, new timing chain set and front engine damper and camshaft timed as required.

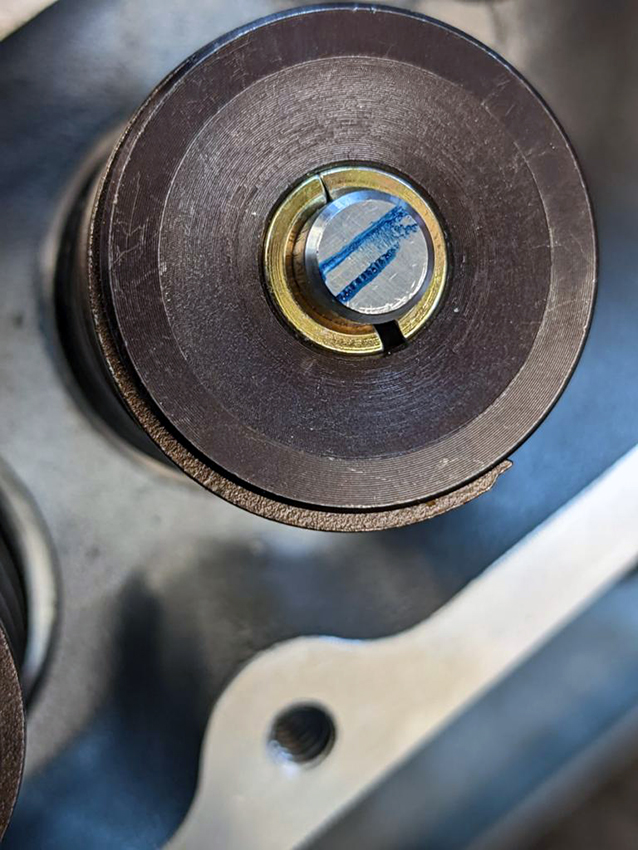

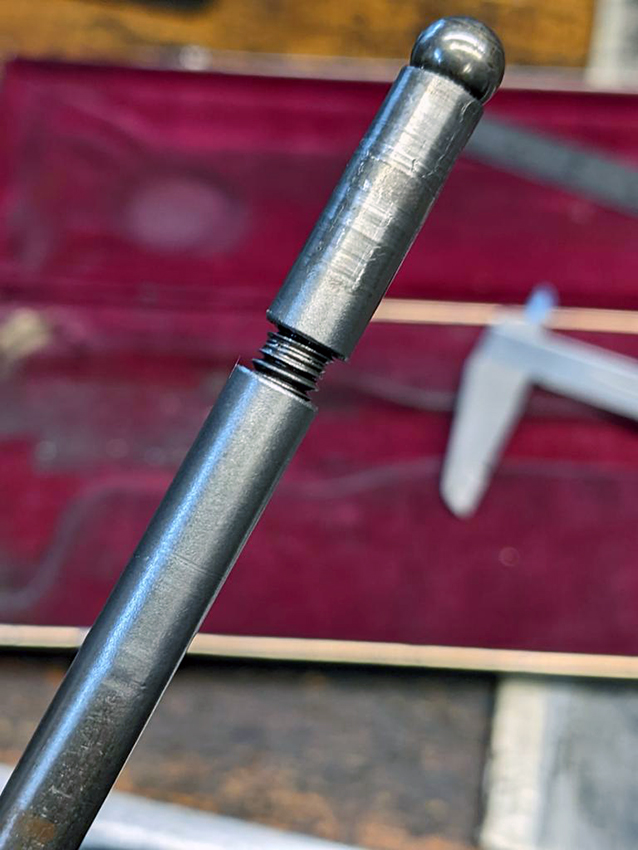

Finally an often overlooked detail is the rocker arm contact point on the valve tip, if the roller doesn’t operate centrally on the valve tip the valves and valve guides can suffer. We used roller rockers to suit the AFR heads and after applying engineers marking blue, the engine is turned over to watch tip contact point – different pushrod lengths affect the position of the contact point and via an adjustable length pushrod a suitable pushrod length was chosen.

Then after the engine is fitted to vehicle it’s down to ensuring all the ancillaries are working correctly to cool and feed the motor harmoniously – then a lot of steady miles to bed everything in.

All this work and calculation is still only for a modified road engine, but must be done to ensure all parts work harmoniously together.


Thanks to Dave for taking time out and writing that up for us. If you want to know the cost, “then you can’t afford it”, as Adam would say. This type of engineering is an old school precision art form and not many can do it properly and that all comes at a price.

As ready built crate engines are becoming harder to get in the UK, this engine rebuild process is the only option. On the other hand, going down this route you know exactly what you are getting and the power you want is only determined by how deep your pockets are.
